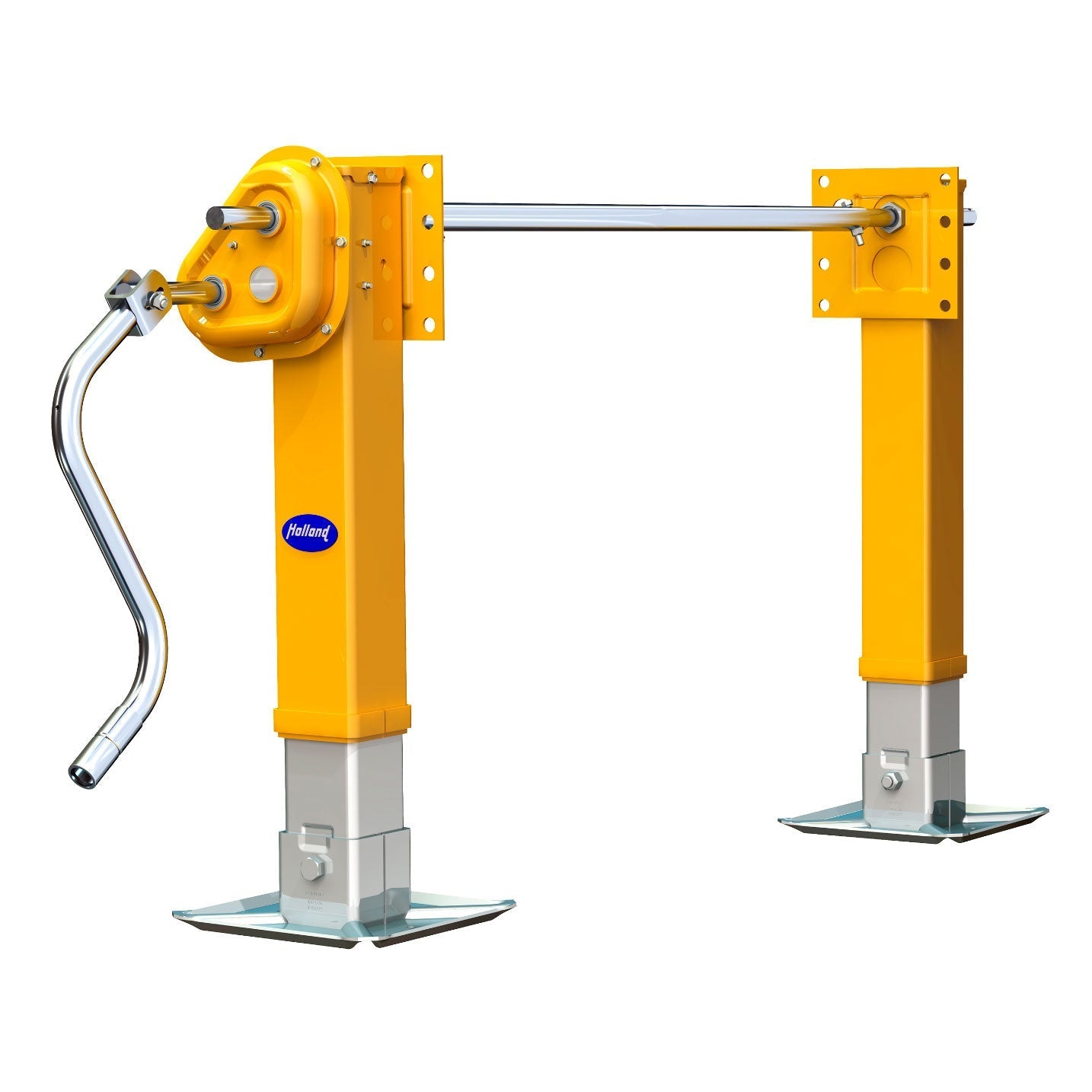

Customer satisfaction SAF Holland 17" Atlas 55 Landing Gear Assembly | LG4001-700000000

SAF Holland 17" Atlas 55 Landing Gear Assembly OEM LG4001-700000000 is not just another component; it is the culmination of decades of innovation and engineering excellence by SAF-HOLLAND, a giant in the manufacturing of heavy duty vehicle solutions. This system of support legs, constructed from the highest quality forged and heat-treated steel, redefines durability, offering unbeatable protection against the most aggressive elements, thanks to its environmentally friendly metal coating Whether you operate in extreme climates, with heavy loads or in. challenging terrain, this Landing Gear ensures your trailer is always in the ideal position, ready for any challenge. With a 17-inch offset and the option of an extended warranty of up to 10 years, this is the component that will elevate the performance of your vehicle. float to the next level. It's not just about endurance, but exceeding expectations with every kilometer traveled!

Specifications:

• Brand: Fortpro
• Vehicle Type: Semi-Trucks / Heavy Trucks
• Product Department: Suspension
• Product category : Trailer Parts
• Part Type: Landing Gear
• OEM Reference #: LG4001-700000000
• Material: Steel Alloy
• Model: Atlas 55
• Mounting Style: Universal
• Axle type: Standard
• Footware Type: Sandshoe
• Travel (Vertical Motion Range): 17 in.
• Footware Size: 4.5 in. x 10.0 in. x 10.0 in.
• Mounting Hole Diameter: 66 in.
• Lift Capacity: 55.000 lbs at 100 ft.-lbs. input torque
• Ultimate Load Capacity: 170.000 lbs
• Side-Load Capacity: 30.000 lbs
• Load Rating: 17
• Low Gear: 38.7 turns = 1" Travel
• High Gear: 4.5 turns = 1" Travel
• Type Retract Tubes: Standard
• Retracted Length: 31.19 in.
• Extended Length: 48.19 in.
• Mounting Bolt Count per Leg: 8
• Upper Leg Length: 28.06 in.
• Accessories: Included
• Applications:
  Trailer
  Semi-trailer

CrossReference:

• SAF Holland: LG4001-700000000, LG4001700000000
